MIRAGE upload

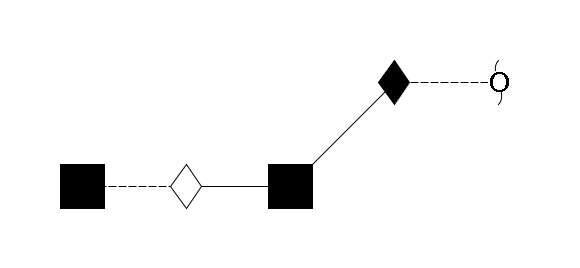

redEnd--?a1D-GalNAc,p--3b1D-GlcNAc,p--4b1D-Gal,p--4a1D-GlcNAc,p$MONO,Und,-H,0,redEnd

Monkey gastric O-glycan

GlyTouCan Accession Number: Loading...

Peak	Intensity
245.18	2.9
250.23	2.1
262.08	211.9
263.0	18.2
285.85	4.0
288.06	5.5
303.99	56.7
304.91	2.5
321.58	6.4
322.01	39.7
322.89	7.3
323.23	2.2
336.46	2.2
346.1	25.1
347.2	2.0
359.18	2.3
362.09	3.8
364.27	59.2
365.23	22.6
366.11	5.1
381.92	37.2
382.16	19.0
383.1	10.8
388.95	6.1
389.32	6.7
407.15	109.9
408.06	5.0
424.16	122.7
425.11	112.9
426.18	8.4
427.33	3.0
437.12	7.9
437.98	3.7
438.2	3.8
438.42	2.9
461.17	2.8
465.34	5.5
466.1	45.3
467.0	6.0
467.33	4.9
478.89	6.1
479.21	12.5
485.01	4.0
485.32	2.4
486.07	4.7
489.26	7.6
507.13	32.1
507.48	2.2
508.18	3.5
509.0	4.3
509.84	2.0
510.46	4.8
525.16	3.3
526.22	2.2
527.23	158.8
528.22	17.5
537.23	7.1
544.86	2.7
545.27	18.1
546.16	2.6
549.27	3.7
567.18	435.5
568.2	76.1
569.2	62.8
570.13	12.3
581.21	2.0
585.92	2.1
587.2	306.4
588.25	75.1
591.18	4.1
640.0	6.8
640.26	4.3
641.22	2.1
670.21	21.3
671.26	11.1
674.71	2.6
682.15	156.1
683.32	26.9
688.37	21.5
689.27	5.8
691.13	2.0
700.17	4.5
712.27	6.3
713.1	4.5
715.41	7.5
716.1	4.7
716.32	2.1
730.25	443.4
731.3	151.1
733.19	87.5
734.0	14.2
734.29	8.6
740.86	3.4
741.17	5.7
747.01	2.2
748.25	278.5
749.22	69.0
753.2	2.9
759.69	2.6
760.35	4.0

There are 17 similar spectra:

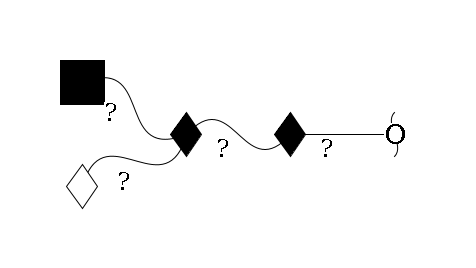

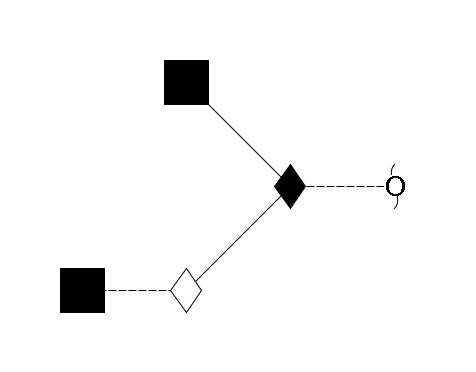

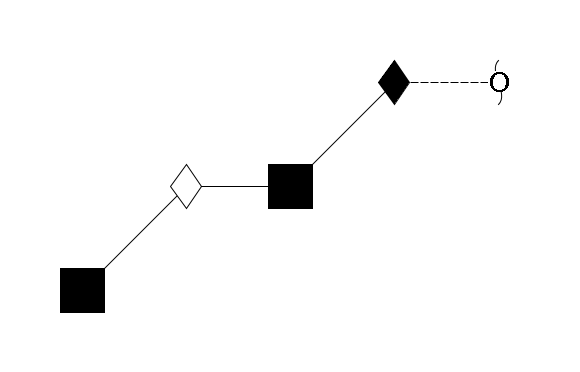

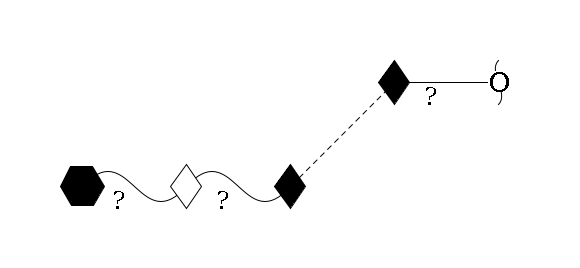

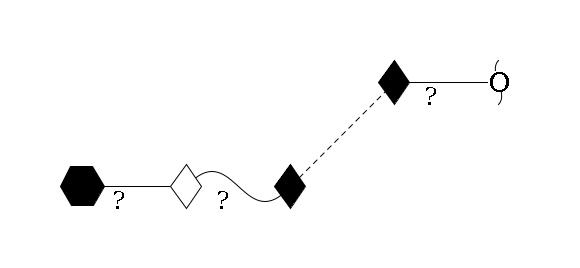

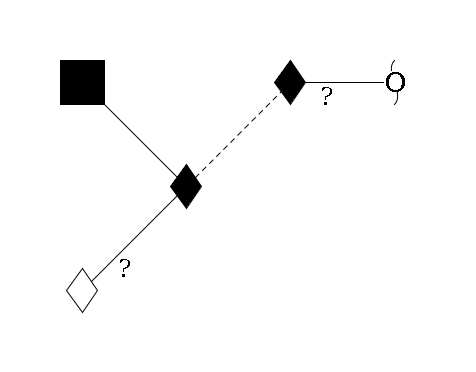

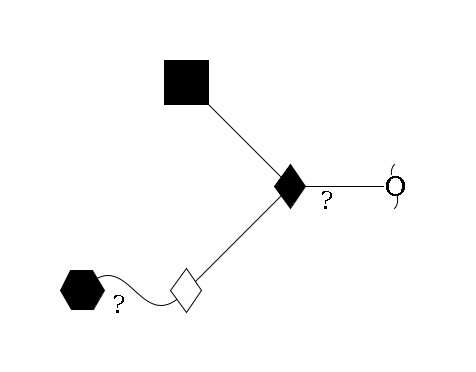

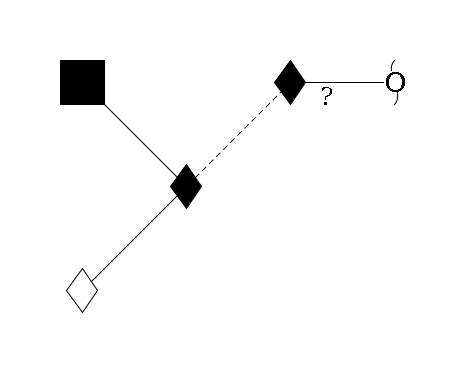

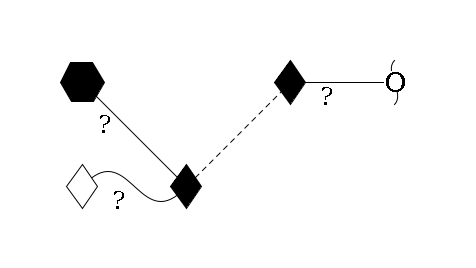

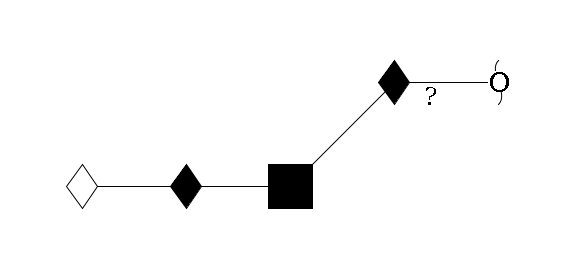

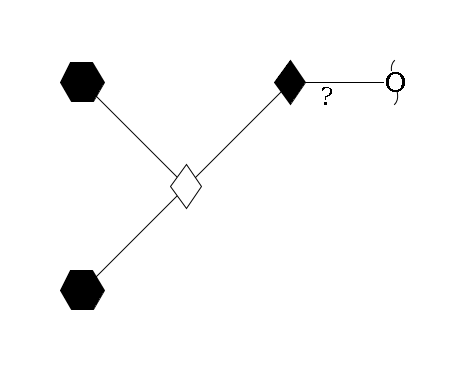

Id	Structure	Score
5715		0.87
4851		0.81
		0.81
5719		0.74
4852		0.65
5718		0.65
		0.65
5518		0.59
3755		0.58
7994		0.58
5203		0.58
5431		0.57
5565		0.57
4806		0.51
		0.51
7406		0.50
7435		0.50

Structure Format

SNFG Oxford Text

Structure details

Reducing Mass: 789.32
(Calculated Monoisotopic)

Reducing End: Reduced

Persubstitution: Underivatised

Biological Context

Taxonomy - Macaca Mulatta

Tissue - Gastric Mucosa

HPLC

Column

Method

gradient with 10 ul/min run rate
10 mM Ammonium Biocarbonate
10 mM Ammonium Biocarbonate in 80% AcCN

Mass Spec

Thermo Fisher Scientific LTQ Orbitrap ESI

MIRAGE Structural data
